Morning POTA with KM4CFT: Back-to-Back activations with the venerable Yaesu FT-818!

6 Comments

As I write this report, I’m on the road with my family–we’ve been spending the week on the coast of North Carolina and are now (at time of publishing) in Raleigh. I’ll keep this field report short and sweet so I can publish it quickly and also fit in an activation before record temps heat up the region!

Blue Ridge Parkway (US-3378)

On the morning of July 4th, 2024, Jonathan (KM4CFT) and I arranged to meet and activate on the Blue Ridge Parkway (US-3378).

Jonathan was in town visiting family over the holiday weekend, and I had a brief window of time that morning to join him. My schedule had been packed since Field Day, making this my first chance for a POTA activation for a couple of weeks.

We knew it would be an interesting activation right from the start: we both arrived at the Folk Art Center at the same time and were greeted by a large black bear strolling down the road in front of the entrance! A bear walking away from your POTA spot is always a good thing.

After a quick catch-up, I grabbed my arborist throw line and deployed the 30/40 meter linked end-fed half-wave antenna I’d built using the KM4CFT antenna kit.

It would have been rude to use another antenna with KM4CFT standing right there! (Note to N5FY: Yes, I know I’ve been rude to you on many previous activations, haha!)

Gear:

Note: All Amazon, CW Morse, ABR, Chelegance, eBay, and Radioddity links are affiliate links that support QRPer.com at no cost to you.

On The Air: The Accidental Self-Spot

Jonathan took to the air first. Since neither of us had announced our activation, I opened POTA.app to spot him. Except, I didn’t. In a moment of confusion, I accidentally spotted myself!

It turns out there’s no easy way to delete your own spot once you’ve done that. (If there is, I’d love to know, though I hope to never make that mistake again!)

What followed was rather comical. Jonathan noticed people thought he was me, even though he used his own callsign in each exchange. I guess it’s easy to mishear a callsign when you think you already know it!

I kept spotting myself “QRT,” but many kind operators kept re-spotting me. I even moved to 14,000 kHz (an out-of-band frequency I’d never use) and spotted myself QRT. People were still re-spotting me on Jonathan’s frequency!

It was funny, and the early morning hour on a holiday probably contributed to the confusion.

After Jonathan logged his ten contacts, he handed the radio over to me. I swapped out paddles (his TP-III setup mounted to the FT-818 wasn’t comfortable for me).

I started calling CQ POTA de K4SWL, spotted myself (correctly this time!), and the real activation began.

In the end, I worked 25 stations in 26 minutes. Thanks to all the hunters!

Then it was time to call QRT and continue our day. It was great seeing Jonathan and fitting in a little POTA before the day really started!

QSO Map

Here’s what this five-watt activation looked like when plotted out on a QSO Map:

Activation Video

Here’s my real-time, real-life video of the entire activation.  As with all of my videos, I don’t edit out any parts of the on-air activation time. In addition, I have monetization turned off on YouTube, although that doesn’t stop them from inserting ads before and after my videos.

Note that Patreon supporters can watch and even download this video 100% ad-free through Vimeo on my Patreon page:

Click here to view on YouTube.

Thank you

Thank you for joining me during this activation! (And thank you, Jonathan, for joining me!)

I hope you enjoyed the field report and my activation video as much as I enjoyed creating them!

Of course, I’d also like to send a special thanks to those of you who have been supporting the site and channel through Patreon, and the Coffee Fund. While not a requirement, as my content will always be free, I really appreciate the support.

As I mentioned before, the Patreon platform connected to Vimeo makes it possible for me to share videos that are not only 100% ad-free but also downloadable for offline viewing. The Vimeo account also serves as a third backup for my video files.

Thanks for spending part of your day with me! Have a brilliant week ahead and be kind to one another out there!

Cheers & 72,
Thomas (K4SWL)

Accessories, Field Reports, Morse Code, News, Portable, POTA, QRP, Travel, Videos

POTA Activation at Strouds Run State Park: A Rainy Morning and Ham Radio Memories!

6 Comments

On Tuesday morning, May 14, 2024, I hopped in my car and headed north to Athens, Ohio. It was in Athens, back in 1997, that my ham radio journey truly began, and where I met my friends Eric (WD8RIF) and Mike (K8RAT).

For over 14 years, Eric, his son Miles (KD8KNC), and I have made the annual pilgrimage to Hamvention and FDIM, with few interruptions. My routine is to drive to Athens, catch up with Eric and his wife, Vickie, stay overnight, and then head to Dayton the next day with Eric and Miles. I enjoy this because it breaks up my travels and usually allows for some POTA activating along the way.

This Wednesday morning, Eric had an appointment and a meeting, so our plan was to leave for Dayton around noon. This gave me the morning free to play radio!

Breakfast at Miller’s Chicken

I left the house around 8:00 AM with the goal of activating Strouds Run State Park, conveniently located near downtown Athens. But first, breakfast!

I try to avoid chain restaurants when traveling, preferring local spots. I was delighted to discover that Miller’s Chicken, an Athens institution, served breakfast. I had no idea!

Miller’s Chicken holds fond memories for me. When my wife was a graduate student at Ohio University, for a brief period of time, she lived within walking distance and we often ate there. She even acted in a student film shot at the restaurant!

Walking in, I realized it had been 23+ years since my last visit. I ordered a bacon, egg, and cheese biscuit with coffee as a group of students left, leaving me with the place almost to myself.

POTA at Strouds Run State Park (US-1994)

I arrived at the park around 9:15 AM. It had been raining all morning, so I sought cover under a picnic Shelter.  Eric, a frequent activator of Strouds Run, had told me where to find all of Strouds’ shelters.

Check out Eric’s standing on the park’s POTA page:

You can also read all of Eric’s hundreds of field reports on his website.

I found an empty shelter by the lakeshore (no surprise given the weather). I brought several radios with me on the Dayton trip: my Elecraft KX2, KH1, Index Labs QRP Plus, Venus SW-3B (always in the car), and my Yaesu FT-818.

Propagation has been a hot mess lately. I figured 40 meters and 20 meters would be the best bands to try, and the EFHW is resonant on both, eliminating the need for an antenna tuner.

Setup was easy, with trees near the shelter providing ideal suspension points for the EFHW.

(Note about audio: As I prepared this activation video, I discovered that my wireless mic wasn’t connected, so you won’t hear me when I walk away from the camera. My apologies! There’s also more wind noise than usual. However, you’ll hear plenty of waterfowl and other birds enjoying the park.)

Jeweler’s Bench Block

Only a couple of days prior, I received a Jeweler’s Bench Block that I purchased on Amazon.com (affiliate link). Several friends had recommended I pick up one to pair with my lightweight, portable keys that have embedded rare-earth magnets.

The key I paired with it was my BamaKey TP-III. You’ll hear me rave about this combo in the activation video.

It weighs 13.7 ounces and has a silicon base: I found that with the TP-III (which has a light action), it was rock-solid on the picnic table.

I wish I would have purchased one of these ages ago!

Gear:

Note: All Amazon, CW Morse, ABR, Chelegance, eBay, and Radioddity links are affiliate links that support QRPer.com at no cost to you.

On The Air

I started calling CQ and, fortunately, hunters started replying! Continue reading POTA Activation at Strouds Run State Park: A Rainy Morning and Ham Radio Memories! →

Antenna Tuners, Antennas, Field Reports, Morse Code, News, Portable, POTA, QRP, Videos

Let’s Give it a Go: Pairing the Elecraft AX1 and Emtech ZM-2 Manual ATU

24 Comments

Last month, I received a comment and question from Gordon (KO4AYC) here on QRPer.com:

“I am curious if anyone has used the AX1 with the AXE1 40 meter extender and tuned this antenna for 40 meters using the Emtech ZM-2 tuner?”

For the life of me, I couldn’t remember if I’d tried this combo before.

The ZM-2 ATU is a simple manual antenna tuner that you can purchase either as a fun-to-build kit or fully assembled and tested.

I’ve owned my ZM-2 for many years, and I believe every QRP field operator should have one. They do a brilliant job of matching random wire antennas and taking your resonant antenna to a non-resonant band. Being a manual ATU, they require no power source. If you’d like to read a quick tutorial on tuning the ZM-2, read this previous post.

I figured the easiest way to answer Gordon’s question was to give it a go!

The AX1 does require a counterpoise, so before hitting the field, I did check to make sure there was continuity between the shield of the ZM-2’s BNC connector and the black binding post when the ZM-2 was switched to “GND” for coax antennas. Fortunately, there was! I loved this idea because it meant that no matter the radio, I knew I’d have an easy connection to ground for the AX1 counterpoise.

Blue Ridge Parkway (K-3378)

On Wednesday, February 21, 2024, I grabbed the ZM-2, AX1, and AXE 40M coil (since Gordon specifically asked about 40M) along with my Yaesu FT-818ND. It was time to see just how effectively the ZM-2 might match the AX1.

I store my AX1 in this Maxpedition pouch (see link in gear section below).

Upon arrival, I began setting up the station.

Even though it was approaching 2:00 PM locally, I wanted to see if the ZM-2 would match the AX1 (with AXE coil) on 40 meters first. I didn’t expect a lot of activity on that band so early in the afternoon, but I figured I could hopefully work a couple of stations.

I attached the AX1 directly to the ZM-2 antenna port and deployed the whip and 40M counterpoise.

It was a bit gusty, and I quickly realized that the AX1 might topple over in the wind. To secure the antenna, I used the handle of my GR1 backpack. It was a semi-effective arrangement (actually, the handle sort of pulled the antenna toward the pack, which wasn’t ideal either–I eventually removed it).

In calm conditions, I wouldn’t worry about the antenna toppling over; the ZM-2 provides enough of a base that it’s stable. In the wind, though, you’ll definitely need to secure the ZM-2/AX1 combo to keep it from being blown over.

My plan was to start on 40 meters, then also hit 30, 20, and 17 meters. This would give me an opportunity to see if the ZM-2 could match the AX1 on multiple bands.

Side note: I can’t remember if I mentioned this in a previous field report, but one sad bit of news for me is that there’s a new source of QRM at the Folk Art Center. It’s likely coming from the VA medical complex next door, but it raised the noise floor to at least S5 on most bands. This will make it more difficult for me to work weak signals from this particular POTA site.

Then again? My buddy Alan (W2AEW) recently pointed out to me that compromised antennas like the AX1 don’t feel the effects of local QRM as a higher-gain antenna would. I’d been thinking the same thing.

Gear:

Note: All Amazon, CW Morse, ABR, Chelegance, eBay, and Radioddity links are affiliate links that support QRPer.com at no cost to you.

On The Air

I hopped on the air and started calling CQ POTA on the 40-meter band. I worked one station quickly (thanks, W5GDW) and then silence. I didn’t expect 40 meters to be active this time of day, but I didn’t think it would be completely dead either.

I checked the POTA spots page and discovered that the connection to the Reverse Beacon Network was down. Even though I scheduled the activation, the system hadn’t spotted me.

Once spotted, I worked three more stations in quick succession.

I didn’t hang around on 40 meters. Continue reading Let’s Give it a Go: Pairing the Elecraft AX1 and Emtech ZM-2 Manual ATU →

Antennas, Field Reports, New Products, News, Portable, POTA, QRP, Reviews, Videos

QRP POTA and testing the new JNCRadio MC-599 portable dipole antenna!

7 Comments

In late December 2023, I received a package from Jesse at JNCRadio/Chelegance. It was their new MC-599 portable dipole antenna. They sent it—full disclaimer: at no cost to me—for evaluation, but shortly after receiving it, life got crazy and I was delayed in taking it to the field.

Fast-forward to February, and I was eager to take it to the field and see how it might perform. On February 5, 2024, a nice window of opportunity opened in the afternoon while one of my daughters was rehearsing A Midsummer Night’s Dream with her cast. Pisgah National Forest and Game Land were a 20-minute drive from her meeting site, so I headed there to deploy this new antenna.

The JNCRADIO MC-599

On-site, I pulled out the two main components of the MC-599 dipole system: the bespoke padded bag holding the antenna and the portable mast.

I knew the basics about assembling the MC-599 because I had watched a video on the Chelegance website that morning.

However, this was the very first time I had deployed the MC-599. I had never even removed any of the antenna components from the padded bag.

With this antenna, it’s best to have an open area for the two sides of the dipole (two telescoping whips) to fully extend without touching tree branches, etc. I had one particular picnic site in mind at the roadside picnic area I chose, but a couple was having a picnic there when I arrived. I waited to see if they might be leaving soon, but they weren’t, so I chose a site I had used before, even though it was flanked by trees.

Assembly was easy: I simply attached the center of the dipole to the 13′ mast, then attached the two telescoping whips to either side and extended them to the 20M position silkscreened on the whip (identical to the MC-750 vertical markings—see below).

Next, you simply attach your coax to the center of the dipole, then extend the mast all the way up.

I had to avoid touching tree branches, but it actually fit quite easily into this small space.

Since it was a bit breezy, I used some line to guy the mast. Ideally, you’d want a minimum of three guying points, but I only had two lines with me, so I made do, and it worked fine—the antenna was stable.

Next, I set up my radio: the Yaesu FT-818ND. Since the MC-599 was, in theory, resonant, I didn’t need an ATU for a match.

I turned on the FT-818 and discovered that the SWR was a perfect 1:1. Amazing.

I suppose I shouldn’t have been surprised because my Chelegance MC-750 is always perfectly resonant (without needing a transformer) simply following the whip markings for guidance.

I should note here that the MC-599 can handle up to 200 Watts PEP—I was pushing 5-6 Watts. Also, the frequency range using the whips is from 20-6 meters. Chelegance also includes two 7 MHz wire elements that can be deployed in an inverted vee shape to play radio on the 40-meter band. It’s an efficient system and has many fewer components than a Buddipole systems I’ve used in the past.

Gear:

Note: All Amazon, CW Morse, ABR, Chelegance, eBay, and Radioddity links are affiliate links that support QRPer.com at no cost to you.

On The Air

Keep in mind that my POTA site was in a deep valley, flanked by high ridge lines–I wasn’t sure what to expect as I hopped on the air.

I started calling CQ POTA and the first station I heard was DL1OK operating in Spain as EA8/DL1OK. Logging Dmitrij was a good sign indeed for this portable dipole!

Stations kept flowing in. I worked my first ten contacts in ten minutes.

I continued working stations in a continuous pileup until I ran out of time. I ended up logging a total of 46 contact all within 50 minutes. I did spend a few extra minutes (as I always do) trying to pull out weak stations and slower code stations.

What fun!

QSO Map

Here’s what this five-watt activation looked like when plotted out on a QSO Map.

Note that this map does not include my contact with EA8/DL1OK in Spain:

Activation Video

Here’s my real-time, real-life video of the entire activation.  As with all of my videos, I don’t edit out any parts of the on-air activation time. In addition, I have monetization turned off on YouTube, although that doesn’t stop them from inserting ads before and after my videos.

Note that Patreon supporters can watch and even download this video 100% ad-free through Vimeo on my Patreon page:

Click here to view on YouTube.

MC-599 notes

I’ve got to admit: the MC-599 made a great first impression.

As with the MC-750, I’m most impressed with the build quality. The components are all sturdy and nicely machined. The padded case was custom made to hold the MC-599 and its components. Everything fits together as it should and—again—was resonant when deployed according to the whip markings.

Even on this inaugural deployment, it didn’t take long to set up. The next time I deploy it, it will go even faster. Packing it up afterward (as you can see in the video) went very quickly.

Keep in mind: the MC-599 is a low-impact, high-profile antenna.

If you’re at a site that doesn’t allow antennas in trees, the MC-599 could be an excellent option. Other than using optional guy lines that would require tent stakes in the ground, it would have no impact on park grounds.

I love the fact that the MC-599 is self-supporting. This would be an absolutely brilliant antenna to use at parks with wide-open spaces and few trees for support.

That said, it is not a stealthy antenna. In fact, portable dipole antennas are some of the most conspicuous portable antennas you could deploy. They’re maybe slightly less conspicuous than a hex beam or Yagi. Even though I was cloaked by a few trees, the couple that was occupying the picnic site I had hoped to use couldn’t help but stop by on their way out and ask what it was I was doing. I bet if I had been using a wire antenna, they wouldn’t have even seen it.

I would always ask permission before setting up an antenna like the MC-599 at, say, a small historic site or urban park.

I could also see using the MC-599 for SOTA (Summits On The Air), but primarily on summits that are either drive-up, or where the hike is minimal. The aluminum alloy mast is lightweight for its size, but it’s quite large to consider taking on an extended hike. However, for a nice drive-up summit, I imagine you could work some serious DX. Just bring a few guy lines in case it’s windy.

I do think the MC-599 would make for a great Field Day antenna. Since it can handle up to 200W PEP and is easy to lower and switch bands, it would be a brilliant portable option for those operating a multi-band 100W rig.

But obviously? It’s an exceptional performer with QRP power. It’s hard to beat a dipole even when it’s only 13′ off the ground.

Thank you

Thank you for joining me on this fun activation!

I hope you enjoyed the field report and my activation video as much as I enjoyed creating them!

Of course, I’d also like to send a special thanks to those of you who have been supporting the site and channel through Patreon, and the Coffee Fund. While certainly not a requirement as my content will always be free, I really appreciate the support.

As I mentioned before, the Patreon platform connected to Vimeo make it possible for me to share videos that are not only 100% ad-free, but also downloadable for offline viewing. The Vimeo account also serves as a third backup for my video files.

Thanks for spending part of your day with me!

Cheers & 72,

Thomas (K4SWL)

Field Reports, Guest Posts, News, Portable, POTA, QRP, Videos

Matt’s Weekend POTA Roundup!

1 Comment

Many thanks to Matt (W6CSN) who shares the following post from his blog at W6CSN.Blog:

Weekend POTA Roundup

by Matt (W6CSN)

It’s been a stormy past several days here in Northern California, but if anything, the weather only amplifies my motivation to go outside and get on the air.

Rather than do a separate writeup for each, this post is a roundup of my last four POTA activations, from Friday, February 2nd through Sunday, the 4th.

A faint rainbow splashes down in front of Angel Island

Thursday and Friday had been wet, with one storm in a series moving across the Bay Area. However, by Friday evening the cold front had passed and there was a break in the rain. This was a perfect opportunity to try an after work activation at the Presidio of SF (K-7889).

I hadn’t used the QCX-Mini in a while, and this activation reminded me why. I believe what is happening is that being so close to the antenna, RF interference causes clicking while keying, nearly to the point of distraction. I need to experiment with RF chokes on the key and audio lines to see if that improves the situation.

Fed up with the RFI on the QCX-Mini, I switched over to the MTR-4B which doesn’t seem to suffer the same issue. I wrapped up the activation after netting 21 QSOs in the cold west wind.

All QSO maps in this post are from http://tools.adventureradio.de/analyzer/

The next bout of rain wasn’t due to arrive until later Saturday afternoon. This was a change in the forecast that subsequently altered my plan to stay in Saturday soldering on my QMX Hi-Bander project.

Initially I went to Fort Point (K-0819) in the hopes of changing it up from my usual activation park but there were just too many people there. So seeking relief from crowds, I crossed the Golden Gate Bridge and went up on the slopes of Mt. Tamalpais.

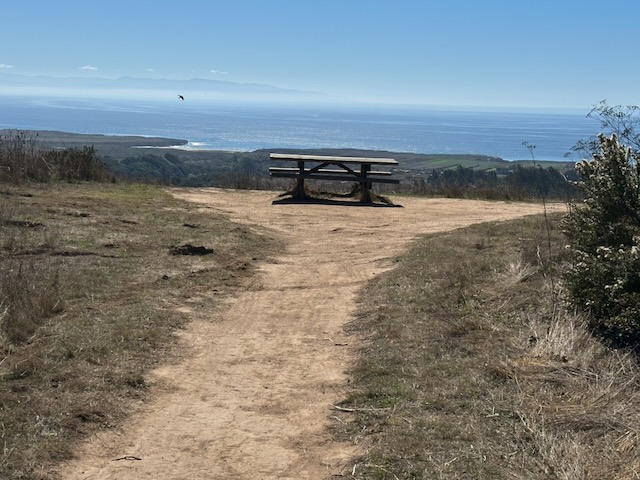

I parked at Trojan Point at an elevation of approximately 1800 feet. See this post for more views from this location. The temperature was in the mid-40s, which is cold for us coastal Californians. Besides, the winds were picking up ahead of the next storm so I operated from the comfort of my vehicle using the Gabil 7350T base loaded vertical antenna on 15m and 20m.

This activation used the FT-818 and yielded 23 contacts, including JH1MXV from northwest of Tokyo, Japan coming in fairly strong on 21 MHz.

Driving back to San Francisco takes me right through the Presidio of SF (K-7889) and noticing that it was after 00:00 UTC, I made the last second decision to divert to East Beach to see if I could work in another activation before the anticipated rain.

At my usual spot for activating this park, it took only moments to raise the MFJ-1979 20m quarter wave and do a quick deployment of the MTR-4B on the trunk of the car. The wind was picking up, but not nearly as strong as it was up on the mountain.

After seven QSOs, the skies began spitting raindrops, this was going to be close! I closed the cover of the Maxpedition pouch to protect the radio and battery while the Bencher paddles could tolerate a little bit of moisture.

I was happy to have a Rite-In-The-Rain notepad for logging [Amazon affiliate link], because now I was certainly writing in the rain! Three more contacts and the activation was concluded with a hunt of Jim, WB0RLJ, in K-4011. Continue reading Matt’s Weekend POTA Roundup! →

Field Reports, Guest Posts, News, Portable, POTA, QRP, SSB

POTA by Bicycle: VA3MZD’s QRP Ham Radio Journey

13 Comments

Many thanks to Rod (VA3MZD) who shares the following guest post:

POTA by Bicycle: A Ham Radio Journey

By Rod Murray VA3MZD

First, some background: I earned my Canadian Basic With Honours Amateur Radio License in February of 2022 as a retirement goal while taking advantage of pandemic isolation time to read and study for the exam. I then chose VA3MZD as my call sign. Back in 2007, while teaching in Australia, my students gave me the Aussie nickname, Mr Muzzdog, and it stuck. I’m now Victor Alpha Three Mike Zulu Delta.

At about the time I got licensed, I acquired a Yaesu FT-818ND QRP radio. I had read and heard a lot about POTA and was eager to get on the air but also to operate outdoors. Being active in hiking, cycling and paddling, my immediate goal was to activate a local park on one of my outdoor adventures. I learned as much as I could about QRP and POTA from subscribing to Thomas’ QRPer Blog as well as numerous other channels. I was thrilled when I made my first HF QSO followed shortly thereafter with my first POTA contact as a Hunter from my QTH. This made me even more intent on activating a Park.

My activation attempts from a local park, however, were unsuccessful. QRP with a compromised, mini loop antenna wasn’t working for me. My first successful activation was unique and did not occur until a few months later, far from home.

In May 2022 I traveled to Vancouver, BC to visit family. One of the regulars on my radio club’s morning net (The Elmira Radio Club), a long distance Elmer, so to speak, offered to take me to a local British Columbia park and help me make my first activation. Despite having never met, Trevor VE7BM, scheduled a rendezvous east of Vancouver at VE-3304, Castle Park, and in half an hour, we had over 10 QSOs in the log. I was hooked!

My First Activation with Elmer VE7BM at VE-3304, Castle Park, BC

Upon returning to my home province of Ontario, I acquired an EFRW antenna that I eventually tested for the first time on Field Day in June of 2022. The Nelson 9:1 worked well with my FT-818 and I began taking it on visits to my local Conservation Parks and on hiking trips. I made several successful activations with it but I then ordered a much more portable Tufteln QRP EFRW that Thomas had demonstrated on his QRPer channel. It performed very well and became my regular POTA antenna after installing the Nelson 9:1 permanently in the attic.

Having four POTA units close to home, all within 10 km, made it very convenient to make trips by vehicle to activate them. What makes those 4 parks even more interesting from an outdoor activity perspective is that they are linked by a well maintained rail trail, The Elora-Cataract Trailway which just happens to be part of VE-5082, The Great Trail of Canada! The rail trail connection means that all of these parks can be easily accessed on foot or, my preference, by bicycle.

The Elora Cataract Trailway / The Great Trail of Canada VE-5082 near Shands Dam and Belwood Lake

I started taking my pared down kit, the radio, antenna, tuner, battery and throw line in my bicycle pannier on my regular rides. Then I’d set up the radio for a POTA Activation while visiting a park. My most frequented and my most favourite is VE-5319, Belwood Lake Conservation Area, because of the 10 km eastbound ride through farms and forests, over Shands Dam into the park. Not only is it a pleasant ride, it’s a 2-fer with The Great Trail!

POTA by Bicycle at Belwood Lake Conservation Area – VE-5319/VE-5082

In the westbound direction, The Trailway ends in the scenic and historic tourist town of Elora, and just beyond the town is The Elora Gorge Conservation Area, VE-1392, where the Canadian Heritage designated Grand River cuts a 22 metre chasm through the limestone bedrock.

It has serviced campsites, trails, picnic shelters and tables near mature White Pine trees (Ontario’s Provincial Tree) perfect for deploying a wire antenna. I’ve been fortunate to have met each of these Parks’ Superintendents, and have been able to promote Amateur Radio, my radio club, and also received their full support for POTA activations and Winter Field Day.

Activating VE-1392 Elora Gorge Conservation Area from a picnic shelter with a radio club colleague

Between the two historic mill towns of Fergus and Elora that make up the municipality of Centre Wellington and accessible from The Trailway, stands The Wellington County House of Industry and Refuge National Historic Site, VE-5928. Now renovated to serve as the Wellington County Museum and Archives, the historic limestone building has an interesting, well documented history. Continue reading POTA by Bicycle: VA3MZD’s QRP Ham Radio Journey →

Accessories, Antenna Tuners, Field Reports, News, Portable, POTA, QRP, Reviews, Videos

POTA QRP: Testing the new JNCRadio CS-818 ATU with my upgraded Yaesu FT-818ND

2 Comments

I love testing new stuff in the field and on Tuesday, May 2, 2023 I had a great opportunity to test a number of new items.

FT-818ND Upgrades

I mentioned in a previous post that I purchased a new Yaesu FT-818ND from DX Engineering on December 28, 2022. It smacked of an impulse purchase only in that I had not planned to purchase the radio that very day.

Thing is, Yaesu announced they were discontinuing the FT-818 and I always planned to purchase one to replace out one of my two FT-817NDs. I didn’t want to miss the opportunity to buy a new one under warranty, so I bit the bullet on short notice.

Within a few days of purchasing the FT-818ND, I also purchased another 500 kHz CW filter, a WINDCAMP 3000mAh LIPO battery and a WINDCAMP Anderson PowerPole Adapter.

I planned to make the FT-818ND my primary HF radio and use the other FT-817(s) for full duplex satellite work (and HF too, of course, especially since one is now in a TPA-817 pack frame).

I had all of the upgrades in hand by mid-February, but that Yaesu FT-818ND sat in its box under my radio bench until late April. I was so busy evaluating other gear and keeping up with my busy family life,  it had almost slipped my mind. Well, that and I received the incorrect narrow Collins filter from a seller on eBay; instead of sourcing a replacement, I decided to steal an original 500 Hz filter from one of my other radios while waiting on a replacement.

Those narrow Collins filters? They’ve become pure unobtainium over the past couple of months. At one point, eBay was chock full of them. No longer…

It had actually been a very long time since I pulled out a brand new (non-loaner) radio from the box. It’s funny because I remember opening my first FT-817 back in…what…2001? The box and packaging were identical some twenty one years later!

I unboxed then immediately opened the chassis of the FT-818ND to add the Collins filter, attach my Portable Zero side rails (stolen from my FT-817), add the Windcamp battery pack, and add the Windcamp Anderson PP adapter.

JNCRadio CS-818 ATU

Around the same time, Jesse, with Chelegance, also sent me his latest ATU: the CS-818 which is specifically designed to work with the FT-817 and FT-818 series radios. To be clear, Jesse sent the MC-818 at no cost to me to evaluate.

The CS-818 actually works with any radio, but it ships with the command cable for the FT-817/818 for full integration.

The CS-818 can handle up to 30 watts of power, so it’ll pair nicely with any QRP radio. If using it with a QRO radio, you’d have to be very careful not to push more than 30 watts.

NOTE: Due to the frame rate of my camera and the refresh rate of the OLED display, only a portion of the display shows up in my shots.

In truth, ATUs don’t get me terribly excited. I’m quite content with my Elecraft T1 and Emtech ZM-2; these two portable ATUs match anything and everything I use in the field. Continue reading POTA QRP: Testing the new JNCRadio CS-818 ATU with my upgraded Yaesu FT-818ND →

News, QRP Radios, Surveys

Survey #2 Results: If you could only have one QRP radio for all of your ham radio activities, which one would it be?

20 Comments

This past weekend, I posted the second of several surveys on QRPer.com asking:

“If you could only have one QRP radio for all of your ham radio activities, which one would it be?”

The responses started flowing in immediately and, once again, within the first day we had already accumulated over 400 votes.

I turned off the survey at 8:00 EDT on Tuesday, May 16, 2023, with a total of 618 responses. Due to my travel schedule this week, I didn’t leave the survey open for responses as long as I did for Survey #1.

Survey Results

Here’s a pie chart showing the top 14 results in the survey. To see detail, you will need to click on the image below (or click this link) to enlarge it in a new window:

The top choice was the Icom IC-705 which accounted for 28.8% of the 618 votes.

I’m not at all surprised the IC-705 was the most popular choice.

This survey focused on the one single QRP radio you’d pick to accommodate all of your ham radio activities, modes, etc. Frankly? The IC-705 does it all: HF/VHF/UHF multimode operation, DV voice (D-Star), built-in GPS, wireless connectivity for digital modes, built-in sound card, built-in Bluetooth and WiFi hotspot, built-in recording, broadcast band reception, high-performance receiver, color spectrum display and waterfall, and so much more. Heck, you can even charge its battery pack with a common Micro USB charger.  Read my review if you want a more comprehensive view of the IC-705.

The only real con anyone mentioned was a lack of an ATU which, frankly, is something that’s so easy to remedy with an external ATU or by using resonant antennas.

Your second choice was the Elecraft KX2 which accounted for 20.1% of the votes.

The KX2 is such a versatile portable HF transceiver that it was the most popular choice in our first QRP radio survey. No doubt, those who chose the KX2 love playing radio in the field as their primary activity because it’s such an adept and versatile radio to take outdoors.

Your third choice was the Elecraft KX3 with 18.7% of the votes.

I actually thought the KX3 would take second place since it’s one of the highest-performance HF radios on the market and covers 160-6 meters with a 2 meter option. It’s an HF Swiss Army Knife of a radio.

In fact, during the first day of voting, the KX3 held the number two spot with as much as a 2% lead over the KX2, but as more votes rolled in, that lead narrowed and the KX2 displaced the KX3 for runner-up.

Your fourth choice was the Yaesu FT-817/818 which accounted for 10.5% of the votes.

Again, I’m not surprised the FT-817/818 ranked high among survey respondents. As I mention in a recent article, the FT-817/818 is an amazingly versatile, durable, and capable QRP radio.

It’s also the most affordable among these top contenders!

Like the IC-705, the FT-817/818 has multimode capabilities from 160-6 meters, VHF, and UHF.  It also sports both SO-239 and BNC antenna ports which makes it very unique among QRP radios!

The lab599 Discovery TX-500 took fifth place with 3.9% of the votes among this set of distinguished radios.

Those who chose the TX-500 appreciate it for its 160-6 meter coverage, its unique form-factor and weight, overall performance, weather-proofing, and superb RX/TX current numbers for battery conservation. For those who like to play radio outdoors (sometimes in the rain) for hours at a time with a modest battery? Yeah, the TX-500 is made for that stuff!

Full Results…

If you would like to see the actual number of votes for each of the 48 radios in this survey, click the link below to load the rest of the page: Continue reading Survey #2 Results: If you could only have one QRP radio for all of your ham radio activities, which one would it be? →

News, QRP Radios

Last batch of new Yaesu FT-818NDs: List of retailers and pricing

27 Comments

Many thanks to a number of readers who’ve pointed out that some of their favorite ham radio retailers have now received their final batch of Yaesu FT-818NDs.

I’ll post a list of retailers below (in alphabetical order) who are showing stock at time of posting (Feb 16, 2023):

Should you bite the bullet?

If you’ve been considering a new-in-box, fully warranted FT-818ND, it might be worth purchasing one of these units.

As I mentioned in previous posts, I would certainly not panic-buy an FT-818ND because there are so many tens of thousands of these in the wild I think there are deals to be found on the used market. I do suspect there may be a temporary increase in prices on the used market, but in a few months they’ll go back down.

Other retailers with inventory?

Am I missing a retailer in the list above? Please comment with a link and I’ll add them.

Antennas, Field Reports, Guest Posts, Morse Code, News, POTA, QRP, QRP Radios

Jonathan takes the Yaesu FT-818ND on an inaugural POTA activation!

9 Comments

Many thanks to Jonathan (KM4CFT) who shares the following guest field report and video:

Chatfield State Park (K-1212)

January 20, 2022

by Jonathan Kayne (KM4CFT)

The honorable Yaesu FT-817/818. You all know it and love it. I had been wanting to get myself one for a while but after just buying myself a shiny new ICOM IC-705, I had been planning on getting myself an 818 in the spring to play around with. December came and I find out that Yaesu was going to discontinue the 818, so I went and bit the bullet and bought one from Ham Radio Outlet.

I had been getting into CW for portable operations lately after wanting to learn CW for a while and my friend Zach Thompson (KM4BLG) had pushed me to learn it. I learned it over the course of two months through an app called “Morse Machine” and listening to Thomas’s YouTube videos while working so as to get used to the exchanges and pick up words. Then I activated and all the rest is history! (If you want to see my 3rd time activating see this video here.)

Why is this important? Because the FT-818ND does not have a narrow 500 Hz filter for CW operation by default, and since I consider myself to be still a newbie I wanted to install a Collins Filter before I take my new 818 into the field. Since these filters are hard to obtain, I went with the build your own route. The method I used has been outlined in this blog and I have made a video of it here.

Now that I had my radio all ready to go with a filter, side rails, and Windcamp Battery, I wanted to get it in the field as soon as possible. Unfortunately due to a snow storm, the temperature in the Denver area was quite cold.

I can handle myself pretty well in the cold if I put on enough layers, but my fingers are another story. I have found that I cannot write properly unless my fingertips are exposed. The solution: do the activation in the car! Continue reading Jonathan takes the Yaesu FT-818ND on an inaugural POTA activation! →
